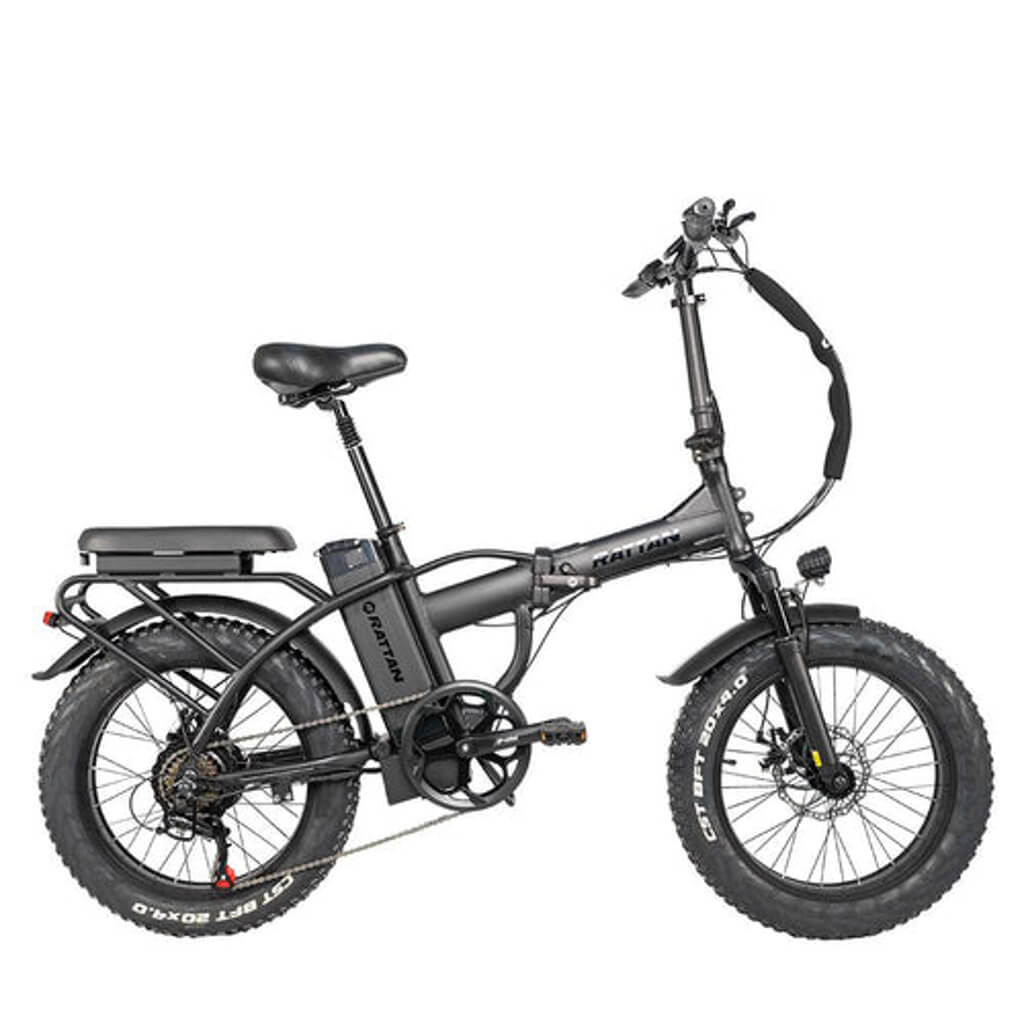

Rattan LM 750W 48V Fat Tire Folding Electric Bike

Flash Sale 5% OFF Coupon Code “SAVE5" (*excludes Bakcou, Dirwin, Ecotric, EWheels, Magicycle and Rambo brands)
Lowest Price Guaranteed!
Free Shipping to the 48 Continental US States!
No Sales Tax!
100% Secure Shopping

Notify me when this product is available:

The Rattan LM 750 is a feature-packed, yet affordable electric bike. The foldable Rattan e-bike has been designed to raise the bar for quality and value in the electric bike market. This folding electric bike is well equipped with an ultra-efficient brushless 750W hub motor, 48V 13Ah lithium battery, front suspension, and seat post suspension for maximum comfort.

With the added safety features of disc brakes on both wheels, this folding e-bike is lightweight, making it very easy to transport by car or public transportation. The 4” fat tires offer a comfortable ride on different terrains, making your commute easier. When folded, the Rattan LM 750 is suitable for use on most public transport and in cars so you can easily take it with you wherever you go. Hop on for cruising around town or hitting the beach.

Rattan LM 750W 48V Folding Fat Tire Electric Bike Features

  1. 750W 48V Brushless Rear Hub Motor: The 750W hub motor provides strong torque at a maximum speed of 23 miles/hour and allows you to ride the electric bike at ease without a load even if the power goes off 5:1 planetary gear reduction. Stated wattage is the manufacturer's rated power capacity. Actual power-to-ground wattage is under 750W to ensure electric bike regulatory compliance and may vary depending on riding conditions.
  2. 48V 13Ah lithium electric bike battery: Electric bike lithium batteries have a maximum energy density with the smallest size and lowest weight, with no memory effect, making you enjoy long-distance cycling. Cycle life: 600~800 times. Lithium-ion battery equipped with overcharge, over-discharge, over current, and short circuit protection functions to ensure a long life expectancy. Electric bike battery covers waterproof, effectively protecting the inner lithium-ion cells.
  3. GD06 Display: Rattan Electric bikes custom GD06 display with energy indicator, pedal-assist, speedometer, odometer, headlight, walk mode, and more.
    1. Battery Capacity - battery level indicated
    2. Speedometer - the current speed
    3. Pedal Assist Level - pedal-assist adjustment
    4. Odometer - mileage of this trip

Download Link: Rattan LM User Manual

Rattan LM 750W 48V Folding Fat Tire Electric Bike

Rattan LM 750W 48V Folding Fat Tire Electric Bike Specifications

960W (Peak) 750W (Sustained), 48V Brushless Rear Hub Motor
Half twist-grip throttle
Rattan Ebikes
custom GD06
display with
pedal assist
level/error display,
indicator and more
Up to 25 Miles / Hour on both Throttle and Pedal Assist.
Removable Lithium-ion 48V, 13Ah (624Wh)
Cadence Sensor, Speed Sensor
Pedal Assist
5 Levels, Low-Profile Cadence Sensing Pedal Assist
Included is a 48V 2 Amp Fast Charger, 4-5 Hour Charging
45 Miles Average
6061 Single-Butted Aluminum Alloy
25kg (without battery)
Rattan sine wave controller,48V, 25A,750W
Suspension Fork with 80mm travel, with lockout
Weight Limit
Maximum Payload Capacity: 300 lbs
Kick Stand Included, Rear Mount
Bottom Bracket Square Taper, Sealed
Crankset 170mm w/ 52 T
Wiring Water-resistant connectors and wiring harness
Freewheel 14-28T, 7 Speed Cassette
Shift Lever 7 Speed
Brakes Front 180mm and rear 160mm TEKTRO Mechanical disc brake
Tubes Butyl Rubber, Schrader Valve
Hubs 750W brushless geared hub motor, 5:1 planetary gear reduction. Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure electric bike regulatory compliance and may vary depending on riding conditions.
Tires CST, custom 20" x 4.0", e-bike rated with puncture-resistant liner *tires received may not include branding
Saddle Rattan by QS-8031
Seatpost Forged Alloy, 30.4mm x 350mm suspension seat post, 2-Bolt Clamp
Foldable Stem 38.1mm length, 10° Rise
Seat Clamp Quick Release
Handlebars Aluminum
Headset VP Sealed Bearing Headset
Grips Ergonomic Comfort
Pedals 9/16' foldable plastic
Lights Front: Rattan Ebikes branded standard LED Rear: Integrated taillight with brake light indicator functionality


Note: Parts or components used on the bike may differ from what's listed. Rattan Ebikes tests all components for compatibility and quality.
